5083 Aluminum Pipe
5083 Aluminum Pipe
Sky Steel Group supplies 5083 aluminum pipes for shipbuilding, offshore structures, marine equipment, and industrial fabrication. This high-strength aluminum-magnesium alloy provides excellent resistance to seawater corrosion and good weldability, making it suitable for demanding marine environments. Pipes can be specified by outside diameter, wall thickness, length, and temper to meet project requirements. Custom cut lengths and material inspection certificates can be requested, subject to manufacturer confirmation.
- Mill Test Certificate Provided
- Strict Quality Inspection
- Custom Sizes Available
- On-Time Global Delivery
5083 aluminum pipe is made from a high-magnesium, non-heat-treatable aluminum alloy known for its high strength, excellent resistance to seawater corrosion, and good weldability. Compared with 5052 aluminum, 5083 generally provides higher mechanical strength, making it suitable for marine and industrial components exposed to demanding operating conditions. Its strength and corrosion resistance make it a practical choice for fabricated tubular assemblies.
Typical applications include shipbuilding, offshore equipment, marine piping components, and welded tubular structures. Depending on the selected temper and dimensions, 5083 aluminum pipe can be cut, machined, and welded to meet specific fabrication requirements. For seawater-handling systems and other fluid applications, pipe selection should account for operating pressure, temperature, and material compatibility.
Sky Steel Group supplies 5083 aluminum pipes according to customer specifications, including outside diameter, wall thickness, length, and temper. Custom cutting and fabrication requirements can be discussed based on project drawings and dimensional tolerances. Buyers can specify the required manufacturing standard, inspection documents, and delivery conditions when requesting a quotation, with material certificates subject to manufacturer confirmation.
Key Features of 5083 Aluminum Pipe
- High-Strength Al-Mg Alloy: Non-heat-treatable 5083 alloy with higher strength than 5052.
- Marine Corrosion Resistance: Excellent resistance to seawater and marine atmospheric exposure.
- Good Weldability: Suitable for welded marine structures and fabricated pipe assemblies.
- Low-Temperature Performance: Retains good toughness in cryogenic environments.
- Offshore Applications: Used in shipbuilding, marine equipment, and offshore structures.
- Custom Supply: Various diameters, wall thicknesses, and cut lengths upon request.
Technical Specifications of 5083 Aluminum Pipe
| Specification | Details |
|---|---|
| Product Name | 5083 Aluminum Pipe |
| Alloy Grade | 5083 |
| UNS Designation | A95083 |
| Material | Aluminum-Magnesium-Manganese Alloy (Al-Mg-Mn) |
| Temper | O, H111, H112 (Subject to Availability) |
| Pipe Type | Seamless / Extruded (Subject to Availability) |
| Outside Diameter (OD) | Custom Sizes Upon Request |
| Wall Thickness | According to Required Dimensions |
| Length | Standard Mill Lengths / Custom Cut Lengths |
| Manufacturing Standard | ASTM B241/B241M (For Seamless Pipe, Subject to Product Applicability) |
| Surface Finish | Mill Finish |
| Processing Services | Cutting / Machining / Fabrication (Upon Request) |
| Corrosion Resistance | Excellent in Marine Environments |
| Weldability | Good |
| Typical Applications | Shipbuilding, Offshore Equipment, Marine Structures, Fabricated Pipe Assemblies |
| Material Certificate | Mill Test Certificate / EN 10204 3.1 (Upon Request) |
| Packaging | Protective Bundles / Export Packaging |

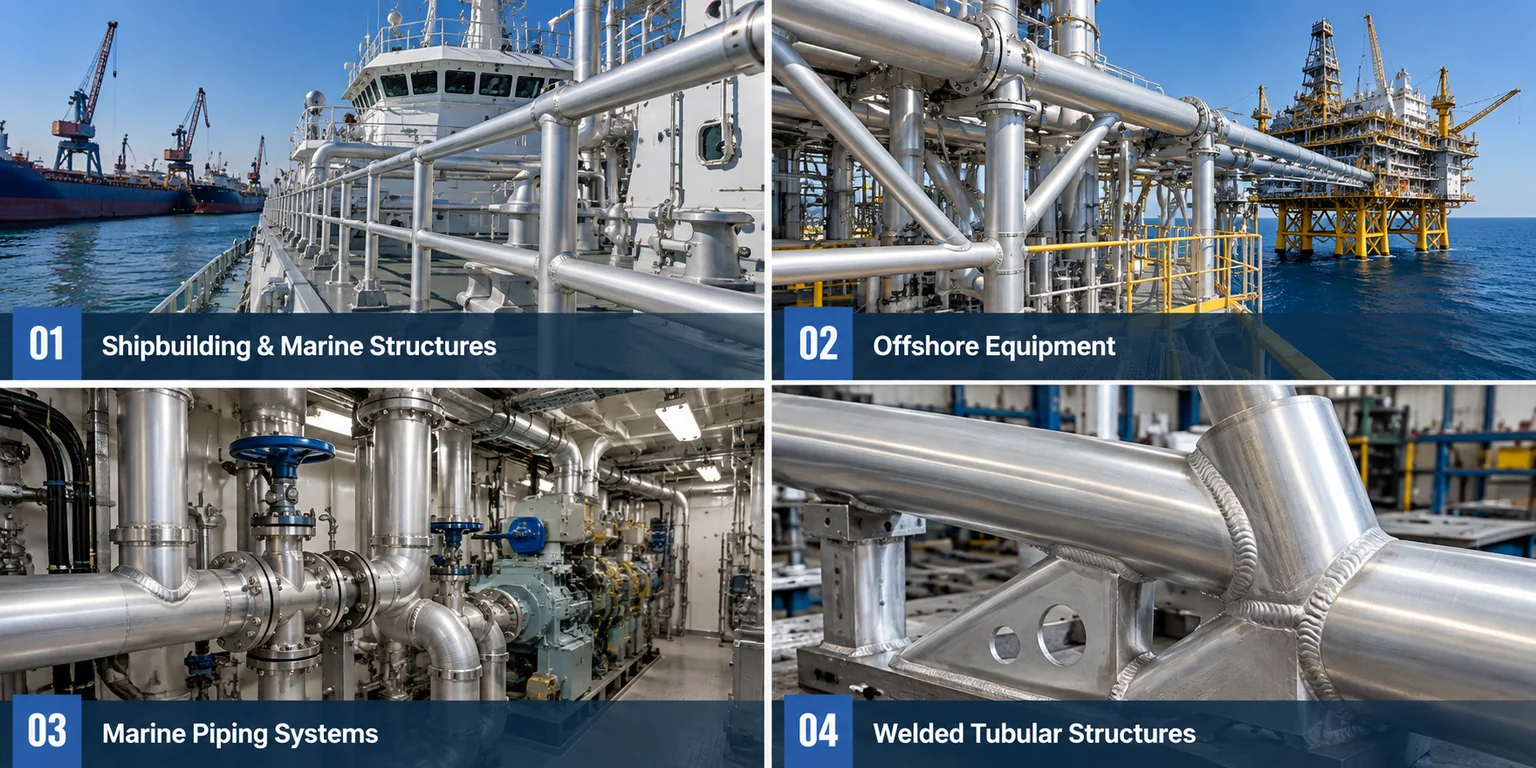

5083 Aluminum Pipe Applications
01. Shipbuilding & Marine Structures
Used for deck supports, tubular frameworks, and fabricated marine components requiring high strength, good weldability, and resistance to seawater corrosion.
02. Offshore Equipment
Suitable for tubular supports, equipment frames, and fabricated assemblies exposed to salt spray and demanding offshore environments.
03. Marine Piping Systems
Used for selected shipboard piping components and fluid transfer assemblies where material compatibility, operating pressure, and pipe specifications meet service requirements.
04. Welded Tubular Structures
Used for welded pipe frameworks, structural supports, and custom tubular assemblies in marine equipment and industrial fabrication.
Frequently Asked Questions About 5083 Aluminum Pipe
1. Is 5083 aluminum pipe suitable for seawater applications?
5083 aluminum offers excellent resistance to marine corrosion and is widely used in marine fabrication. For direct seawater contact or seawater piping, the selected temper, operating conditions, and applicable marine standards must be verified.
2. How does 5083 aluminum pipe compare with 5052?
5083 generally provides higher strength than 5052, while both alloys offer good weldability and marine corrosion resistance. Grade 5083 is often preferred for more demanding marine structures, whereas 5052 is commonly selected for formed components and lighter-duty fabrication.
3. Can 5083 aluminum pipes be welded?
Yes. 5083 has good weldability and is suitable for welded tubular assemblies. Common welding processes include MIG and TIG, with filler metal selection depending on joint design, service temperature, and corrosion requirements.
4. Which manufacturing standards apply to 5083 aluminum pipe?
The applicable standard depends on the manufacturing process and product form. ASTM B241/B241M covers specified seamless aluminum-alloy pipes and tubes, but the required 5083 alloy and temper combination must be checked against the standard before ordering.
5. What sizes and tempers are available?
Outside diameters, wall thicknesses, lengths, and tempers depend on the manufacturing method and supplier availability. Please provide your required dimensions, temper, quantity, and technical drawings for confirmation.
6. Can you provide mill test certificates or marine approvals?
Mill test certificates and EN 10204 3.1 inspection documents can be requested, subject to manufacturer confirmation. If ABS, DNV, BV, or other classification society approvals are required, please specify them before placing an order.
