H-Beam 200×200×8×12 49.9KG/M – Ready Stock
H-Beam 200×200×8×12 49.9KG/M – Ready Stock
High-performance H-Beams (Hot-Rolled Structural Steel) engineered for building frames, industrial plants, bridges, and heavy-duty structures. Features high load capacity, stable section dimensions, and versatile steel grades (Q235B / Q355B / SS400 / S275JR / A36). Prime quality with EN 10204 3.1 MTC provided. Contact us for current stock, thickness availability, and factory-direct pricing.
- Mill Test Certificate Provided
- Strict Quality Inspection
- Custom Sizes Available
- On-Time Global Delivery
Structural Steel H-Beam | Hot Rolled & Welded Universal Beams
Structural Steel H-Beam (Universal Beams / Wide Flange Beams) is an economical profile steel featuring an optimized cross-sectional area distribution and a superior strength-to-weight ratio. Widely used as load-bearing columns, primary roof girders, foundation piles, and heavy bridge frameworks, our H-beams offer exceptional bending resistance, structural stability, and easy fabrication. We supply standard mill-run sizes and provide full custom fabrication services including hot-dip galvanizing, precision cutting, CNC hole drilling, and welding, with EN 10204 3.1 Mill Test Certificates (MTC) provided.
- Mill Test Certificate (EN 10204 3.1 MTC) Provided
- Custom Fabrication: Hot-Dip Galvanizing, Hole Drilling, Precision Cutting & Welding
- Global Standards Certified: ASTM, EN, JIS, GB/T, AS/NZS
- Strict Quality Inspection & Seaworthy Global Export Delivery

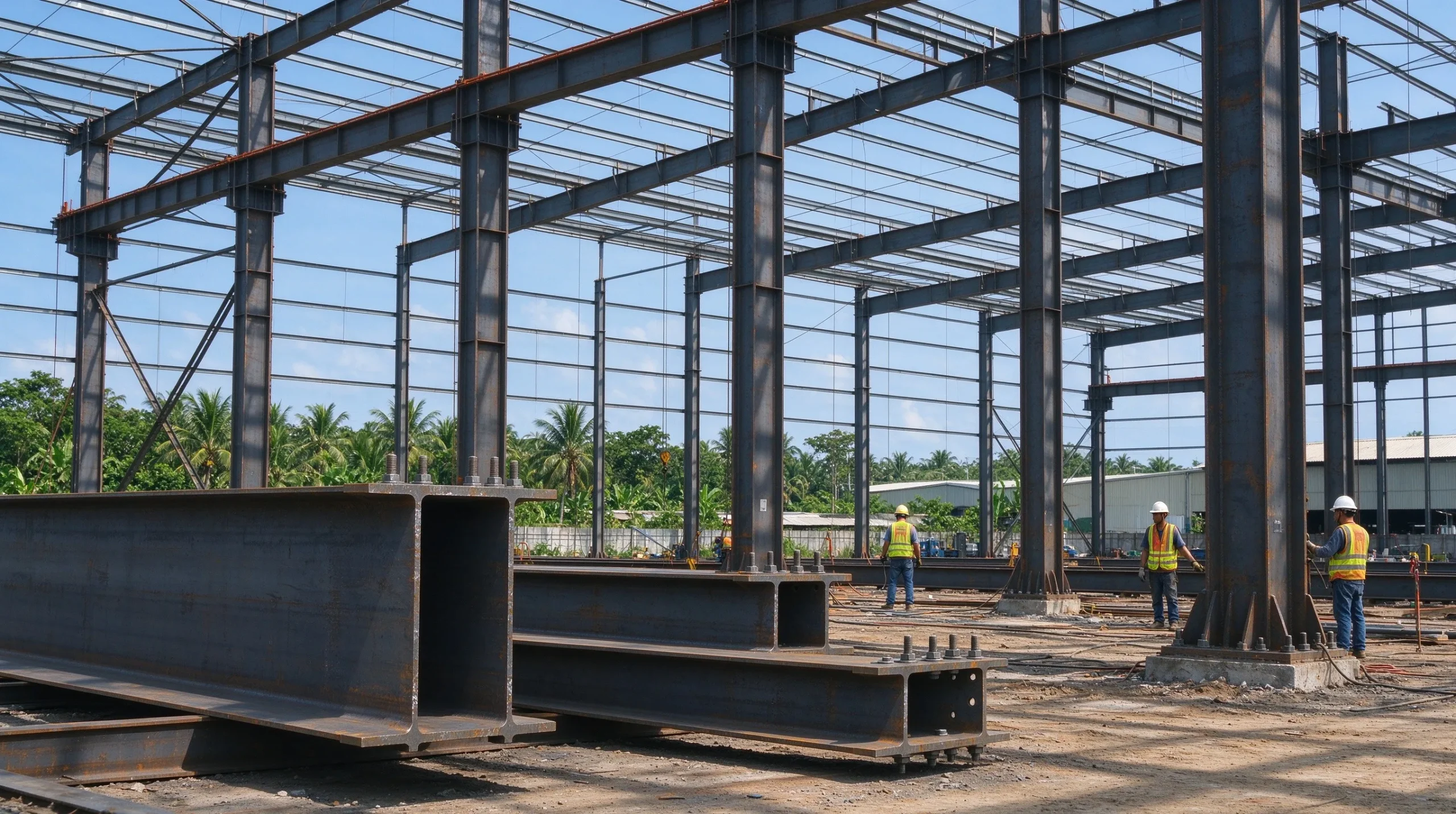

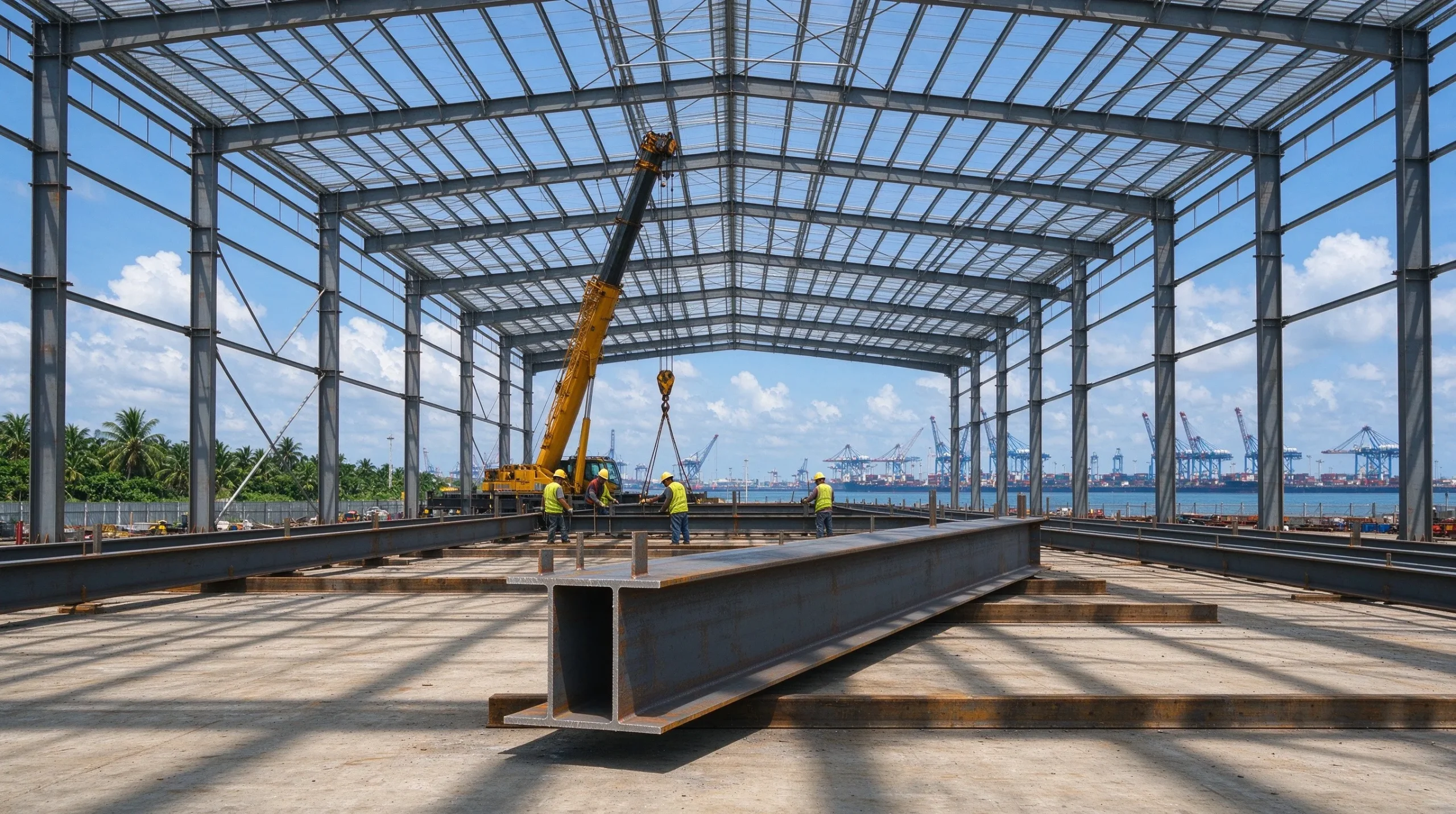

Sky Steel Group supplies hot-rolled and welded H-beams (HW, HM, HN, HEA, HEB, HEM, IPE, UB, UC) for industrial plants, high-rise buildings, marine engineering, infrastructure, and heavy equipment frameworks. We support custom drawing fabrication with pre-assembled base plates, gussets, and connection brackets for rapid on-site bolting.
Structural Advantages & Workshop Pre-Fabrication
The parallel flange geometry of H-beams delivers balanced resistance against axial loads, bending moments, and torsional stress, reducing overall steel tonnage by 15%–30% in structural frameworks compared with traditional tapered I-beams.

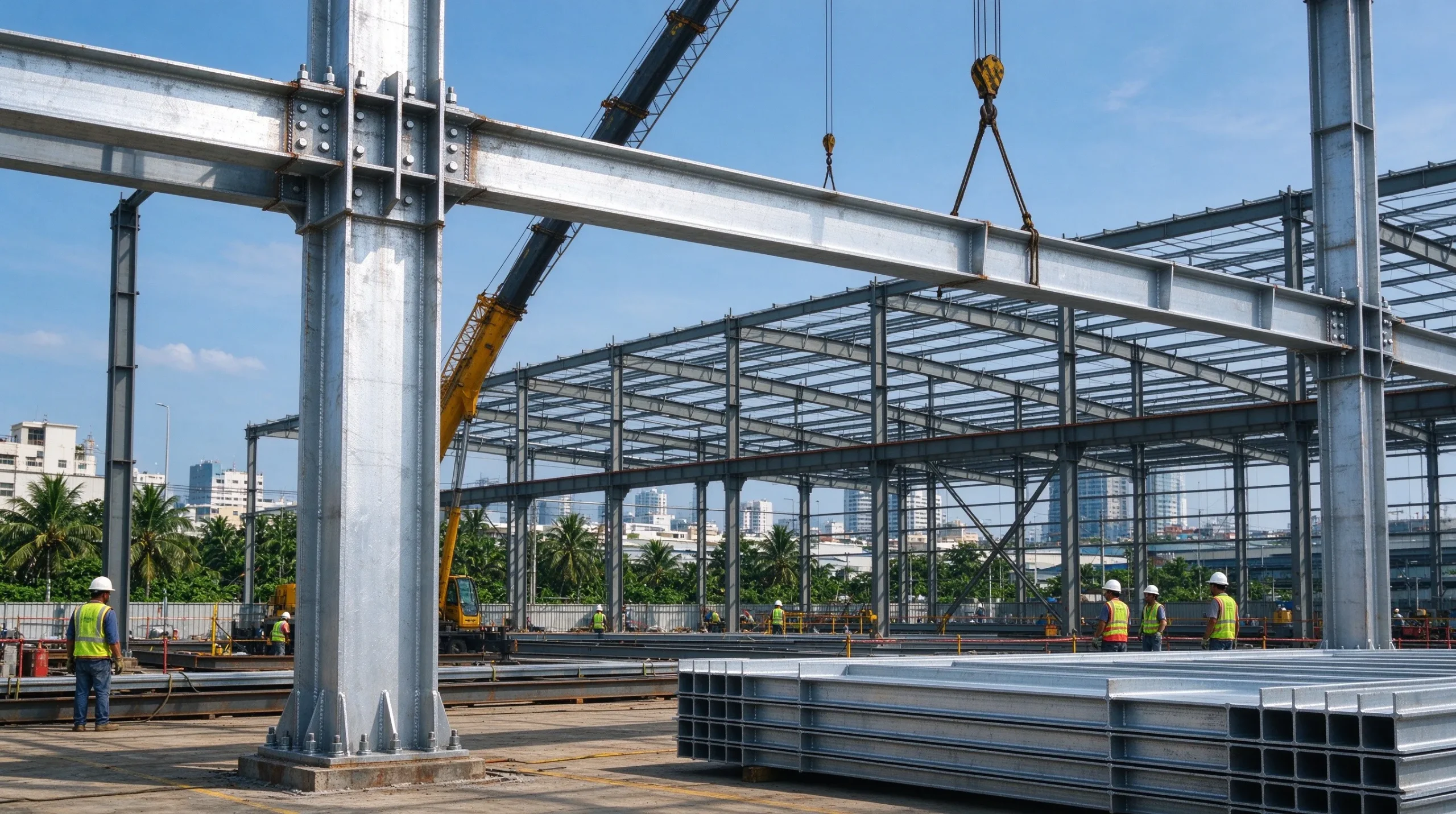

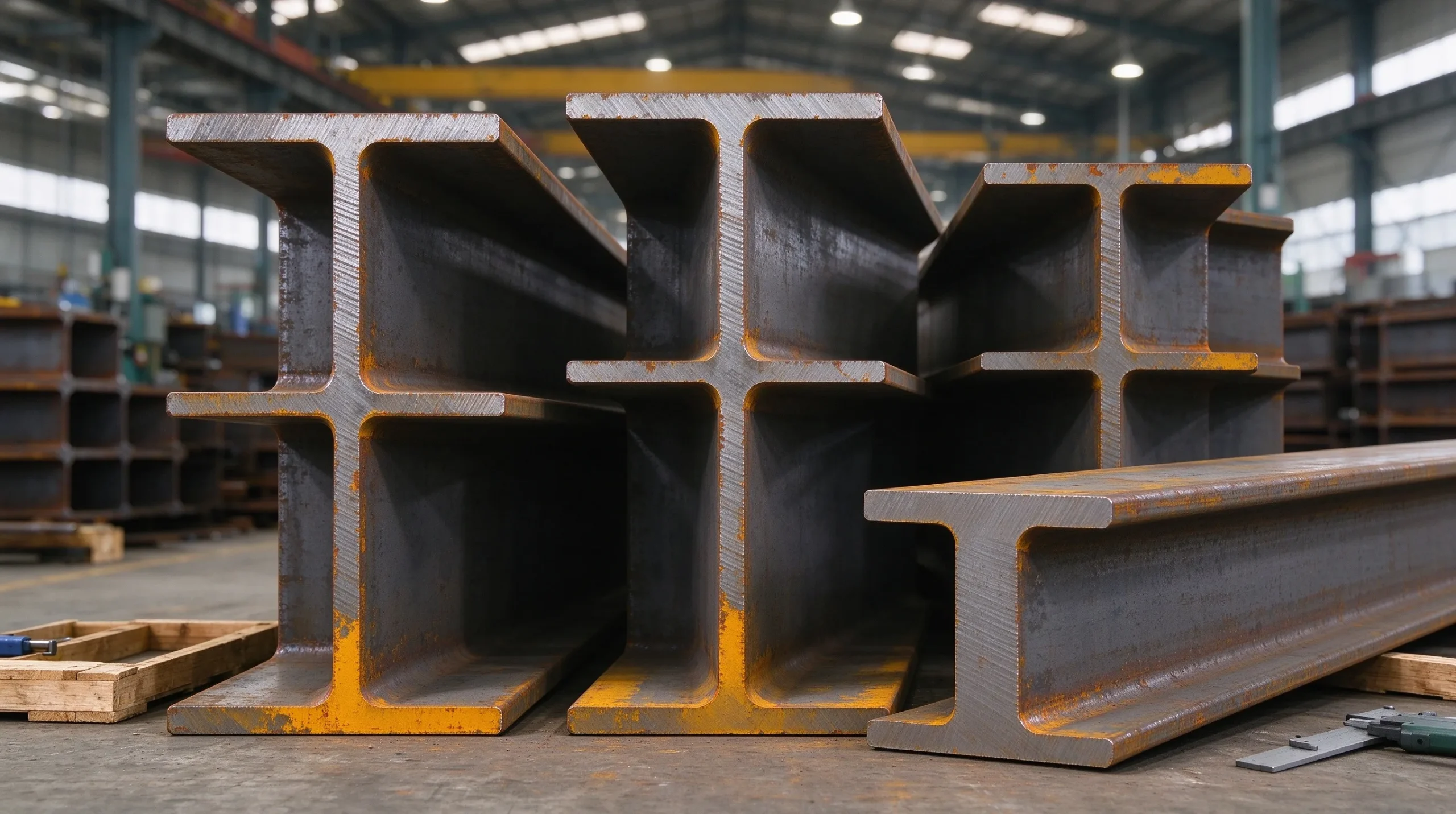

With our advanced in-house CNC drilling, plasma cutting, and submerged arc welding lines, we deliver pre-engineered, ready-to-bolt structural members tailored exactly to your CAD / Tekla drawings. High-grade hot-dip galvanizing options ensure 30–50+ years of rust protection in harsh outdoor, chemical, and coastal maritime environments.
Structural Steel H-Beam Specifications
| Item | Available Range & Engineering Parameters |
|---|---|
| Product | Structural Steel H-Beam / Universal Beam (UB) / Universal Column (UC) |
| Production Type | Hot Rolled H-Beam / High-Frequency Welded / Submerged Arc Welded (SAW) H-Beam |
| Standard Standards | ASTM A6, EN 10034, JIS G3192, GB/T 11263, AS/NZS 3679.1 |
| Steel Grades | Q235B, Q355B/C/D, A36, A572 Gr.50, A992, S235JR, S275JR, S355JR/J2, SS400, SM490B |
| Section Height (H) | 100 mm – 1000 mm (Custom built-up welded beams up to 2500 mm) |
| Section Width (B) | 50 mm – 500 mm (Custom dimensions available) |
| Web Thickness (t1) | 4.5 mm – 45 mm |
| Flange Thickness (t2) | 6.0 mm – 65 mm |
| Length | 5.8m, 6.0m, 9.0m, 11.8m, 12.0m, or Custom Cut-to-Size (up to 18m) |
| Surface Treatment | Black (Mill Finish), Shot Blasted (Sa 2.5), Shop Primer / Painted, Hot-Dip Galvanized |
| Galvanizing Standard | ISO 1461 / ASTM A123 / BS EN ISO 1461 (Zinc layer 60 – 120 µm / 350 – 800 g/m²) |
| Custom Fabrication | CNC Sawing, Hole Drilling/Slotting, Welded Base Plates, Gussets, Cambering, Beveling |
| Certificates & Tests | EN 10204 3.1 MTC, ISO 9001, CE, Ultrasonic Testing (UT), SGS / BV Inspection |
| Packaging | Steel strapped bundling, wooden dunnage, lifting slings, container/breakbulk seaworthy packing |
Where Are Structural Steel H-Beams Used?
Owing to their optimized cross-sectional design, superior load-bearing capacity, and high fabrication flexibility, H-beams are extensively utilized across heavy industrial structures, civil buildings, infrastructure projects, and marine engineering.
Frequently Asked Questions About H-Beam 200×200×8×12 49.9KG/M – Ready Stock
1. What is the main structural difference between an H-Beam and an I-Beam?
H-beams have wide flanges with parallel inner and outer surfaces and uniform thickness, whereas I-beams have narrower flanges with an internal slope (tapered flange). This gives H-beams a substantially higher section modulus and superior resistance against bending and twisting, while making bolt connections simpler and faster.
2. What custom fabrication and processing services can you perform on H-beams?
We provide comprehensive drawing-based pre-fabrication: precision CNC band-saw cutting (tolerance ±1 mm), beveling, high-speed hole drilling/slotting, welding of built-up beams, attachment of base plates and stiffeners, shot blasting (Sa 2.5), anti-rust painting, and hot-dip galvanizing (ISO 1461 / ASTM A123).
3. Which international standards and steel grades do you supply?
We supply ASTM A36, A572 Gr.50, A992 (Wide Flange / W-beams); EN 10025 S235JR, S275JR, S355JR/J2 (HEA, HEB, HEM, IPE); BS 4 UB and UC sections; JIS G3101 SS400, SM490B; and GB/T Q235B, Q355B/C/D (HW, HM, HN).
4. What is your MOQ and standard production lead time?
For standard stock profiles and lengths, the MOQ is 1–5 metric tons with immediate dispatch within 3–7 days. For custom cut-to-length, drilled, welded, or hot-dip galvanized orders, typical production and fabrication lead times are 10–20 days.
5. How do you guarantee dimensional tolerances and welding quality?
All beams undergo strict inspection under ISO 9001 guidelines: sectional dimensions (height, width, web/flange thickness), straightness, and squareness verification; Ultrasonic Testing (UT) for welded seams; and full documentation via EN 10204 3.1 Mill Test Certificates (MTC) and third-party inspection (SGS/BV).
6. How are H-beams packaged and loaded for international maritime transport?

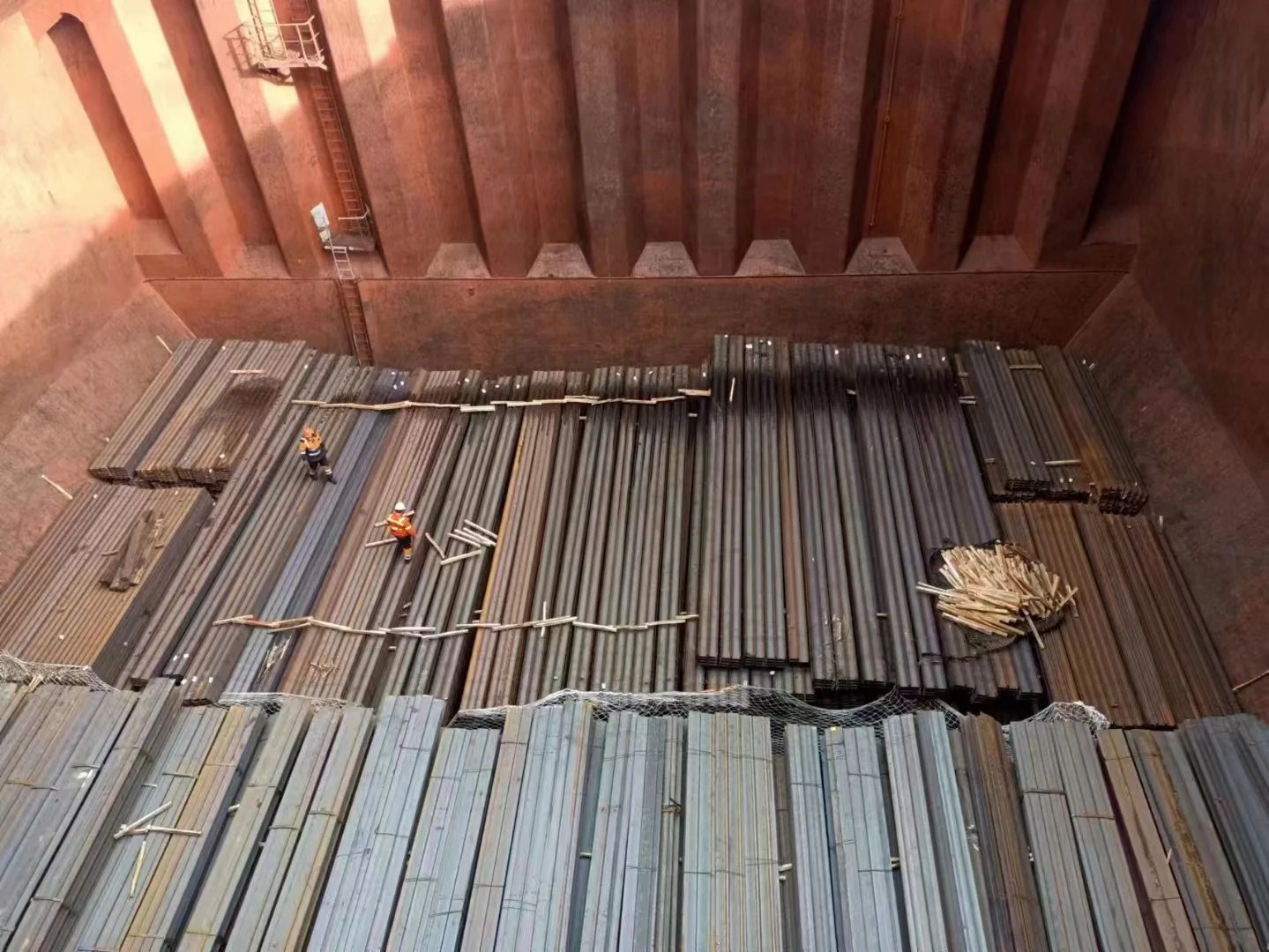

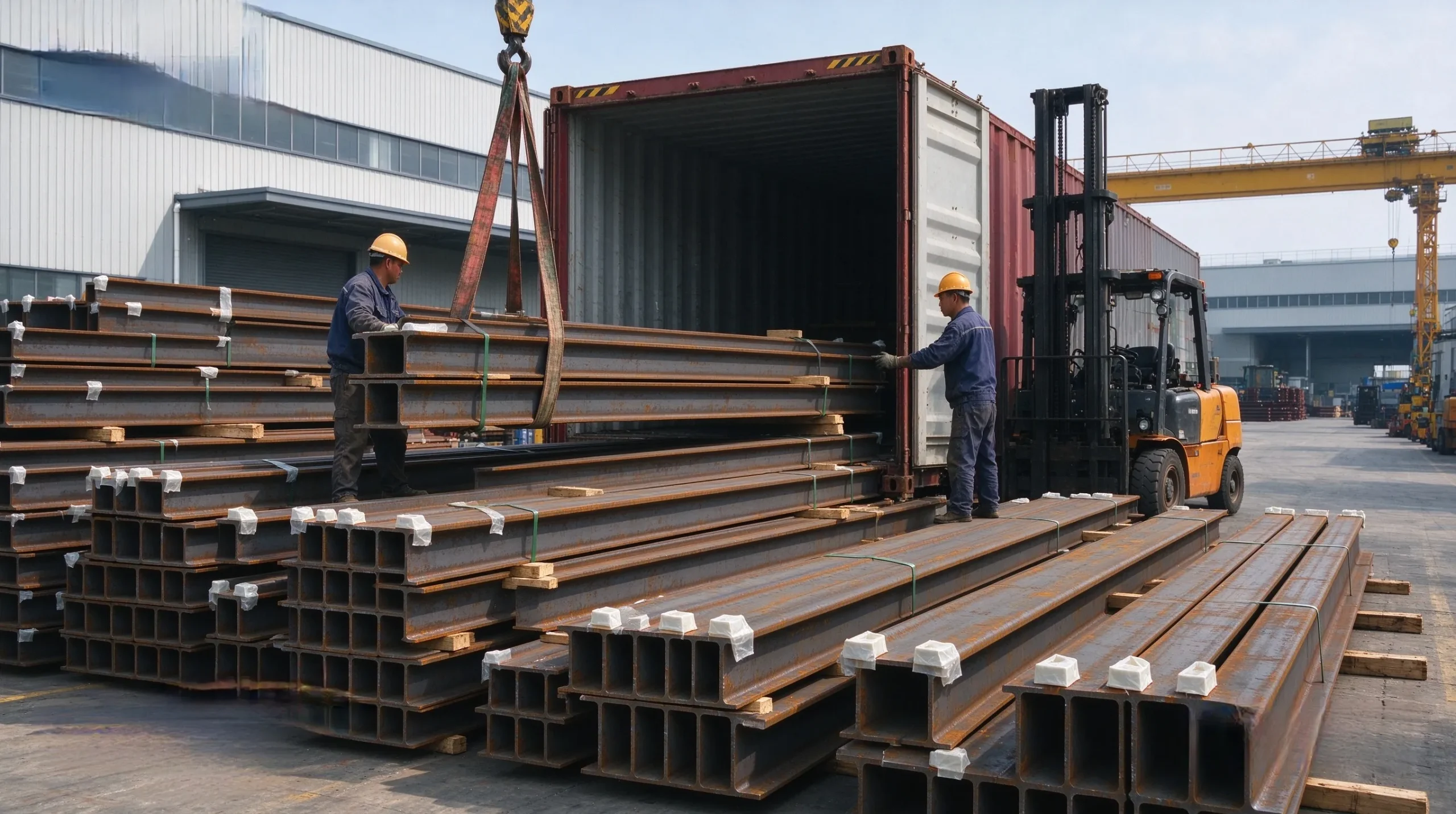

H-beams are bundled with high-tensile steel straps, protected with wooden dunnage spacers, and loaded using nylon slings into 20GP, 40GP, or 40HQ containers (lengths cut to 5.8m or 11.8m). For extra-long beams (>12m), we arrange breakbulk cargo shipping with specialized rust-preventive protection.
