Welded Steel Wire Mesh for Construction, Fencing & Gabion Projects
Welded Steel Wire Mesh for Construction, Fencing & Gabion Projects
Welded steel wire mesh is made of low carbon galvanized steel wire welded at intersections. Stable structure, high strength and rust resistance. Widely used for construction reinforcement, fencing, gabion boxes, animal cages and protection works. Custom wire gauge, mesh opening, panel size and packing available, MTC certificate provided.
- Mill Test Certificate Provided
- Strict Quality Inspection
- Custom Sizes Available
- On-Time Global Delivery
Welded Steel Wire Mesh
Welded steel wire mesh, also called welded wire mesh panel, is manufactured by welding low carbon steel wires horizontally and vertically at every intersection. After welding, it can be electro galvanized or hot dipped galvanized for anti-corrosion performance. It owns rigid structure, not easy to deform, excellent load-bearing capacity and long service life.
We can supply rolls or flat panels according to project demands. Hot dipped galvanized mesh is suitable for outdoor, wet, coastal and harsh environments, while electro galvanized mesh fits indoor protection and light-duty applications. Mesh size, wire diameter and panel dimensions are fully customizable to match construction, fencing and gabion requirements.
Key Features
- Raw material: Low carbon steel Q195 / Q235 (SAE1006, SAE1008)
- Surface treatment: Electro galvanized / Hot dipped galvanized
- Firm welding joint, not easy to break or loose
- High structural stability, anti-deformation
- Good rust & corrosion resistance
- Available in roll form or flat panel
- Custom wire gauge, mesh aperture, length & width
- Mill Test Certificate (MTC) can be supplied
Welded Steel Wire Mesh Specification
| Item | Available Range |
|---|---|
| Product | Welded Steel Wire Mesh / Welded Wire Mesh Panel |
| Raw Material | Low Carbon Steel Q195 / Q235 (SAE1006, SAE1008) |
| Standard | ASTM A1064, BS EN 10244-2 |
| Wire Diameter | 0.6 – 6.0 mm / Customized |
| Mesh Opening | 6×6mm ~ 100×100mm / Custom aperture |
| Surface Treatment | Electro Galvanized / Hot Dipped Galvanized |
| Zinc Coating | Electro: 8–25 g/m²; Hot dipped: 60–280 g/m² |
| Form | Roll Mesh / Flat Mesh Panel |
| Panel / Roll Size | Custom width & length according to requirements |
| Weld Feature | Solid weld point, not easy to crack or loose |
| Application | Construction reinforcement, fencing, gabion box, poultry cage, protection barrier |
| Packing | Roll: Plastic film + woven bag; Panel: Bundled & palletized |
| MOQ | Depends on wire gauge, mesh size and surface treatment |
| Inspection | MTC / Third-Party Inspection Available |
| Customization | Wire diameter, mesh hole, size, galvanizing, cutting available |

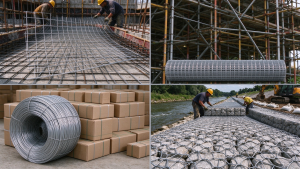

Typical Applications
- Construction: Concrete reinforcement mesh, wall plastering mesh, ground anti-crack mesh
- Fencing: Farm fence, garden fence, safety protective fence
- Gabion projects: Gabion boxes, river bank erosion control, retaining wall
- Breeding: Poultry cage, livestock isolation net
- Industrial: Machinery protection, storage rack partition, isolation barrier
FAQ
FAQ for Welded Steel Wire Mesh
Q1: What is welded steel wire mesh?
A: Welded steel wire mesh is made by welding horizontal and vertical low carbon steel wires together at each intersection. It can be electro or hot dipped galvanized for rust protection, supplied in rolls or flat panels.
Q2: What is the difference between electro galvanized and hot dipped galvanized welded mesh?
A: Electro galvanized mesh has thin zinc coating, bright surface, suitable for indoor or dry environment. Hot dipped galvanized mesh features thick zinc layer, superior corrosion resistance for outdoor, coastal and wet projects like gabion and fencing.
Q3: What raw material do you use?
A: Low carbon steel Q195 / Q235, equivalent to SAE1006 / SAE1008, good welding performance and stable mechanical property.
Q4: Can I customize mesh opening and wire diameter?
A: Yes. Wire diameter from 0.6mm to 6.0mm, mesh opening can be customized from small aperture up to 100×100mm as drawings.
Q5: What forms can you supply, rolls or panels?
A: Both are available. Roll mesh is easy for continuous laying on construction site; flat panels are popular for fencing, cage and partition usage.
Q6: What are the main applications?
A: Concrete reinforcement, wall anti-crack mesh, farm & garden fencing, gabion erosion control, poultry cages, machine safety protection and warehouse separation.
Q7: Are the welding points strong enough?
A: Our mesh uses solid resistance welding. Weld joints are tight and not easy to break under normal load.
Q8: Can you provide MTC certificate?
A: Yes, Mill Test Certificate can be provided. Third-party inspection is acceptable upon request.
Q9: Can I get samples for testing?
A: Free small samples are available. Buyer only bears the courier shipping cost.
Q10: What is your MOQ?
A: MOQ varies by wire gauge, mesh size and galvanized type. Small trial orders for regular sizes are negotiable.
