ASTM A36 S235JR Structural Steel C Channel Profile Galvanized C Purlin

ASTM A36 S235JR Galvanized Steel C Channel

Our galvanized steel C channel, also known as galvanized C purlin, is manufactured from ASTM A36 or S235JR carbon steel, finished with hot-dip galvanizing treatment for superior corrosion resistance. It is available in both hot rolled heavy-duty C channel and light-gauge cold formed C purlin to match different load requirements.

Material & Standard

Steel Grades: ASTM A36, S235JR
Executive Standards: ASTM A36, EN 10025, GB/T 707
Surface Finish: Hot Dip Galvanized (HDG), zinc coating thickness can be customized

Dimension & Custom Processing

We supply full range sizes including custom web height, flange width and thickness. Available processing: cut to fixed length, hole punching, drilling, bending and pre-fabrication according to your drawings. All dimensions and tolerances follow international structural steel standards.

Product Advantages

ASTM A36 / S235JR base material with good weldability and mechanical property.

Hot-dip galvanized layer, excellent anti-rust performance for outdoor, humid and coastal environments.

High strength-to-weight ratio, easy to transport, cut, weld and install on site.

Stable size tolerance, uniform galvanized coating, less maintenance after installation.

Suitable for long-term outdoor projects.

Galvanized Steel C Channel Specification

Item	Available Range
Product	ASTM A36 S235JR Galvanized Steel C Channel / Galvanized C Purlin
Type	Hot Rolled / Cold Formed C Channel
Material Grade	ASTM A36, S235JR
Standard	ASTM A36, EN 10025, GB/T 707
Web Height	30 – 400 mm / Customized
Flange Width	20 – 150 mm / Customized
Thickness	1.5 – 20 mm / Customized
Length	1000 – 12000 mm / Custom Cutting
Surface	Hot Dip Galvanized (HDG), custom zinc coating
Edge	Mill Edge / Cut Edge / Deburred
Processing	Cutting / Punching / Bending / Drilling / Pre-fabrication
Tolerance	According to Relevant Standard / Customized
Application	Solar Mounting, Steel Warehouse, Mining Support, Outdoor Construction
Packing	Steel Bundles / Steel Strapping / Standard Export Seaworthy Packing
MOQ	Based on Grade, Size & Specification
Inspection	MTC Mill Test Certificate / Third-Party Inspection Available
Customization	Size / Length / Zinc Thickness / Punching / Fabrication Available

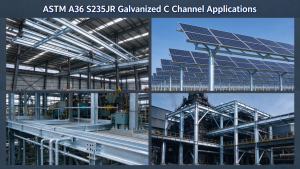

Application

Solar panel mounting support structures
Warehouse, factory and steel workshop roof & wall purlins
Mining project secondary framing and equipment supports
Industrial platform, racking and equipment frames
Agricultural buildings, carport frames and outdoor steel structures

FAQ

Q1: What is the difference between ASTM A36 and S235JR galvanized C channel?

A: ASTM A36 is an American carbon steel grade, widely accepted for North & South America projects. S235JR is European EN standard grade, popular for EU and African projects. Both have good weldability and mechanical performance for structural use.

Q2: Is this hot-dip galvanized or pre-galvanized?

A: Normally we supply hot-dip galvanized (HDG). It provides much better anti-corrosion performance than pre-galvanized, suitable for outdoor, humid, coastal and mining environments. Zinc coating thickness can be customized.

Q3: Can you produce both hot rolled heavy C channel and cold formed galvanized C purlin?

A: Yes. Heavy load hot rolled C channel for main structural support; light gauge cold formed C purlin for roof, wall and solar bracket secondary structure.

Q4: Can you punch holes, cut to length or bend the galvanized C purlin?

A: Yes. Custom cutting, punching, drilling and bending services are available according to your drawings. We can prefabricate parts to save your on-site installation time.

Q5: Will you provide MTC for ASTM A36 / S235JR galvanized C channel?

A: Yes. Mill Test Certificate (MTC) will be issued for each batch. Third-party inspection such as SGS is acceptable if your project requires it.

Q6: What is the zinc coating thickness you normally offer?

A: Standard zinc coating is 60–85 μm. We can make heavier zinc layer over 100 μm for harsh mining and coastal anti-corrosion requirements.

Q7: What are your common trade terms?

A: EXW, FOB, CFR, CIF. We have rich shipping experience to Africa, South America and Europe for mining, solar and construction projects.

Q8: What is your MOQ?

A: No strict fixed MOQ. It depends on size, steel grade and galvanizing requirement. We support small trial orders as well as full container bulk orders.

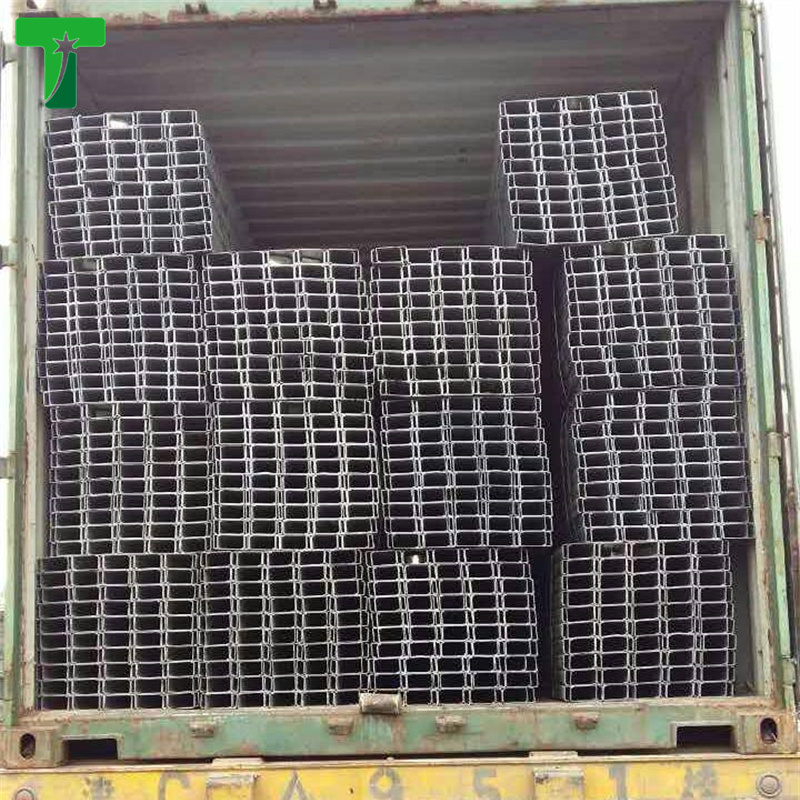

Q9: What is your packing method?

A: Bundled with steel strapping, waterproof wrapping, seaworthy export packing for container shipment.
