24 Inch Large Diameter Carbon Steel Pipe
24 Inch Large Diameter Carbon Steel Pipe
24 Inch Large Diameter Carbon Steel Pipe is used in water transmission, industrial fluid transportation, and infrastructure projects. Made from carbon steel, it is available in different wall thicknesses and lengths to meet project requirements. Pipe specifications, manufacturing methods, end finishes, and surface treatments can be selected according to the intended application and applicable standards.
- Mill Test Certificate Provided
- Strict Quality Inspection
- Custom Sizes Available
- On-Time Global Delivery
24 Inch Large Diameter Carbon Steel Pipe is designed for large-scale piping systems used in water transmission, industrial fluid transportation, and infrastructure projects. With a nominal pipe size of 24 inches and a standard outside diameter of 609.6 mm, it can be supplied in different wall thicknesses according to project requirements. Depending on the required specifications, manufacturing options may include spiral welded, straight seam welded, or seamless construction where available. The pipe can be supplied in various lengths with plain or beveled ends for installation. Surface treatments such as black, painted, epoxy coating, or 3LPE coating can be selected according to the operating environment. Material grades, inspection requirements, and other specifications can be confirmed before production.

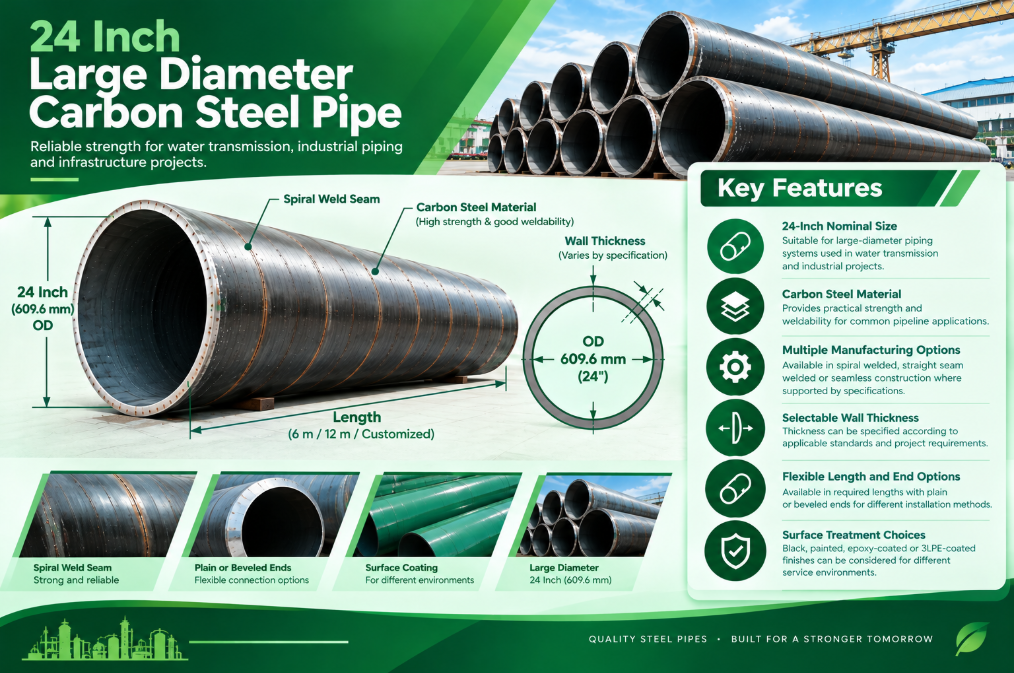

Key Features
- 24-Inch Nominal Size: Suitable for large-diameter piping systems in water transmission and industrial projects.
- Carbon Steel Material: Offers practical strength and weldability for many pipeline applications.
- Multiple Manufacturing Options: Available in welded or seamless construction where supported by the required size and specifications.
- Selectable Wall Thickness: Thickness can be specified according to applicable standards and project requirements.
- Flexible Length and End Options: Available in required lengths with plain or beveled ends for different installation methods.
- Surface Treatment Choices: Black, painted, epoxy-coated, or 3LPE-coated finishes can be considered for different service environments.
24 Inch Large Diameter Carbon Steel Pipe Specifications
| Item | Available Range |
|---|---|
| Product | 24 Inch Large Diameter Carbon Steel Pipe |
| Material | Carbon Steel |
| Nominal Size | 24 Inch / DN600 |
| Outside Diameter | 609.6 mm / 24 Inch |
| Manufacturing Process | Spiral Welded / Straight Seam Welded / Seamless (Subject to Availability) |
| Wall Thickness | Available in Different Thicknesses / Customized |
| Standard | API 5L / ASTM A53 / ASTM A252 / Project-Specific Standards |
| Steel Grade | According to Applicable Standard and Project Requirements |
| Length | 6 m / 12 m / Customized |
| End Type | Plain End / Beveled End / Customized |
| Surface Treatment | Black / Painted / Epoxy Coated / 3LPE Coated |
| Application | Water Transmission / Industrial Piping / Infrastructure Projects |
| Customization | Wall Thickness / Length / Steel Grade / Coating / Quantity |
Application
Water Transmission: Used in large-scale pipelines to transport water over long distances.
Industrial Fluid Transportation: Suitable for conveying compatible liquids and process fluids in industrial facilities.
Wastewater Treatment: Used in wastewater treatment systems for transporting wastewater and process water.
Irrigation Projects: Applied in large-scale irrigation networks to distribute water across agricultural areas.
Industrial Infrastructure: Used in industrial pipeline systems where large-diameter carbon steel pipes are required.
Construction Projects: Suitable for underground pipeline networks and infrastructure projects involving large-volume fluid transportation.
Frequently Asked Questions About 24 Inch Large Diameter Carbon Steel Pipe
1. What is the outside diameter of a 24-inch carbon steel pipe?
The standard outside diameter is 609.6 mm (24 inches), based on NPS dimensions.
2. What wall thicknesses are available for 24-inch carbon steel pipes?
Wall thicknesses can be selected according to the required pipe schedule, applicable standards, and project specifications.
3. Is the 24-inch carbon steel pipe welded or seamless?
Large-diameter pipes are commonly supplied as spiral-welded or straight-seam welded pipes, depending on the required specifications.
4. What steel grades are available for 24-inch carbon steel pipes?
Available grades depend on the application and applicable standards, such as API 5L, ASTM A53, or ASTM A252 where suitable.
5. What surface treatments can be provided?
Options may include black steel, painted surfaces, epoxy coating, and 3LPE coating, depending on project requirements.
6. Can I customize the length and end finish of the pipe?
Yes. Pipe length, wall thickness, steel grade, coating, and plain or beveled ends can be specified according to your project needs.
