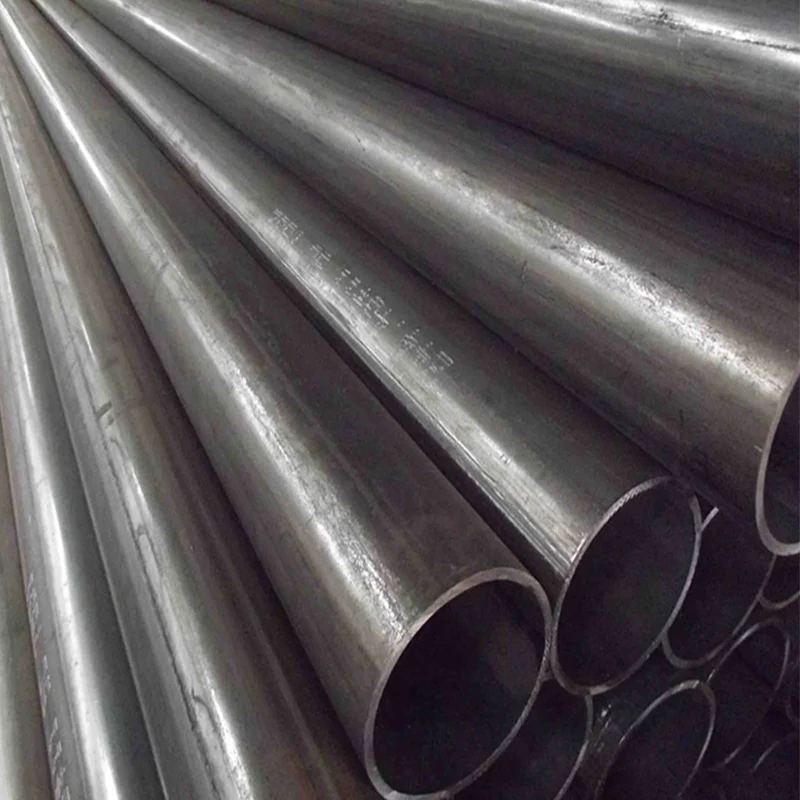

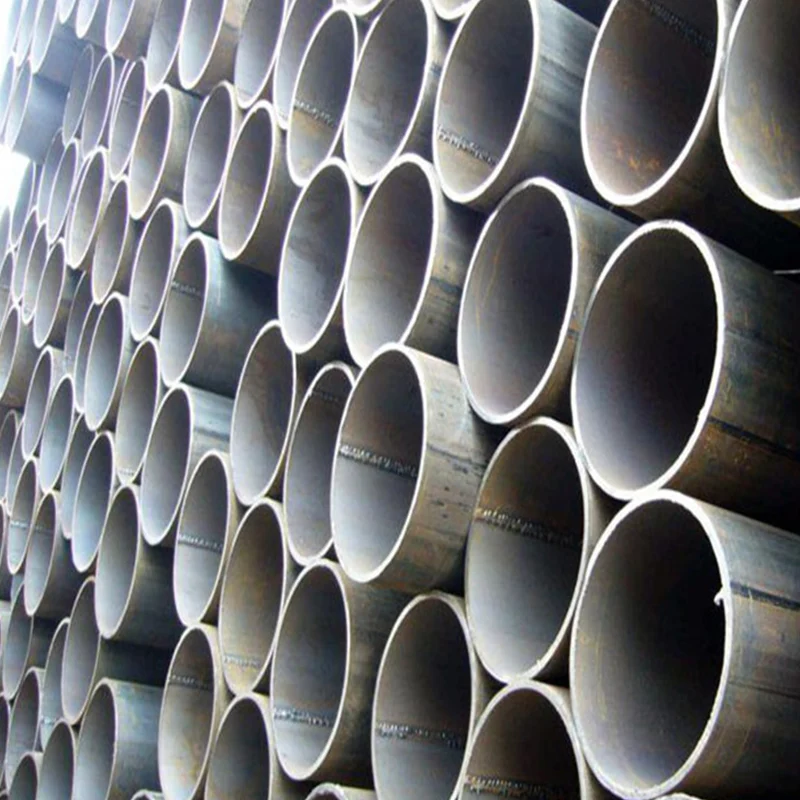

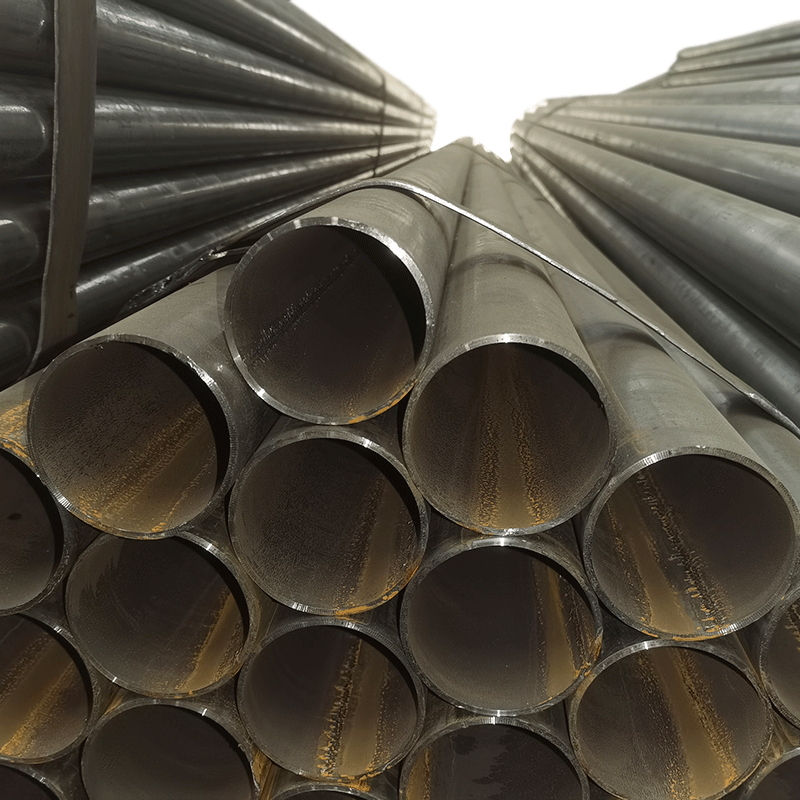

The 6 Inch ASTM A53 ERW Carbon Steel Pipe is manufactured from carbon steel strip using electric resistance welding. It is commonly used in water transportation, gas piping, industrial pipelines, and general construction projects. The pipe is available in different wall thicknesses and lengths to meet various installation requirements. Depending on the project, customers can choose suitable grades and pipe ends for their applications. Surface finishes may include black steel or galvanized coating, subject to availability and order specifications. Each order can be supplied according to the required dimensions and applicable ASTM A53 standard. Before purchasing, buyers should confirm the required grade, schedule, wall thickness, length, and end finish to ensure the pipe matches their project requirements.

Key Features

• Manufactured to meet ASTM A53 requirements for applicable carbon steel pipe grades.

• Produced using electric resistance welding (ERW) for a consistent welded seam.

• Available in a 6-inch nominal pipe size with different wall thickness options.

• Supplied in standard or customized lengths to suit project requirements.

• Available with black steel or galvanized finishes, depending on order specifications.

• Suitable for water piping, industrial fluid transport, gas piping, and other applications that match the pipe grade and service conditions.



  6 Inch ASTM A53 ERW Carbon Steel Pipe Specifications

  Item	Available Range
  Product	6 Inch ASTM A53 ERW Carbon Steel Pipe
  Pipe Type	ERW Welded Steel Pipe / Carbon Steel Pipe
  Nominal Pipe Size	6 Inch / NPS 6 / DN150
  Outside Diameter	168.3 mm (6.625 Inch)
  Material	Carbon Steel
  Standard	ASTM A53 / ASTM A53/A53M
  Grade	Grade A / Grade B, Subject to Availability
  Manufacturing Process	Electric Resistance Welding (ERW)
  Wall Thickness	Schedule 10 / Schedule 20 / Schedule 40 / Schedule 80 / Customized
  Length	6 m / 12 m / Customized
  Pipe End	Plain End / Beveled End / Threaded End, Subject to Specifications
  Surface Treatment	Black / Hot-Dip Galvanized, Subject to Order Specifications
  Application	Water Piping / Gas Piping / Industrial Fluid Transport / Fire Protection / Mechanical Applications
  Processing	Cutting / Beveling / Threading, Subject to Requirements
  Inspection	Dimensional Inspection / Visual Inspection / Testing According to Applicable Standard
  Quality Documents	Mill Test Certificate (MTC) Available Upon Request
  Packing	Steel Strapping Bundles / Protective Packing for Export Shipment
  MOQ	Based on Size / Wall Thickness / Length / Order Quantity
  Customization	Wall Thickness / Length / Pipe End / Surface Treatment / Packing



Application

• Used in water supply pipelines for transporting water in residential, commercial, and industrial facilities.

• Applied in gas piping systems where the pipe grade and specifications meet project requirements.

• Used to transport non-corrosive fluids in industrial plants and processing facilities.

• Installed in building plumbing systems for water distribution and related piping work.

• Used in fire protection piping systems when the required pipe specifications meet applicable fire safety codes.

• Applied in mechanical and structural projects for pipe supports, frames, and other steel fabrications.

  Frequently Asked Questions About 6 Inch ASTM A53 ERW Carbon Steel Pipe

  1. What is the outside diameter of a 6 Inch ASTM A53 ERW Carbon Steel Pipe?

  The standard outside diameter is 168.3 mm (6.625 inches), based on the 6-inch nominal pipe size.

  2. What grades are available for 6 Inch ASTM A53 ERW Carbon Steel Pipe?

  ASTM A53 carbon steel pipes are available in Grade A and Grade B, depending on the required specifications and product availability.

  3. What wall thicknesses can I choose for this steel pipe?

  Wall thickness options depend on the pipe schedule, such as Schedule 10, Schedule 20, Schedule 40, and Schedule 80.

  4. What lengths are available for 6 Inch ASTM A53 ERW Carbon Steel Pipe?

  Common lengths include 6 meters and 12 meters, with customized lengths available according to project requirements.

  5. What surface finishes are available for this carbon steel pipe?

  Black steel pipe is commonly supplied, while galvanized finishes may be available upon request, depending on product specifications.

  6. What are the main applications of 6 Inch ASTM A53 ERW Carbon Steel Pipe?

  It is commonly used in water piping, industrial fluid transportation, gas piping, fire protection systems, and mechanical projects where the pipe grade and specifications are suitable.
