ASTM A36 S235JR Hot Rolled Steel I Beam, IPE Section I Beam

Our IPE section I beam is hot rolled structural steel with parallel flanges, produced from ASTM A36 or S235JR carbon steel. The IPE profile follows European EN standards, which is widely recognized in Africa, Latin America and European engineering projects. With stable mechanical properties, excellent ductility and great weldability, it is the preferred material for main load-bearing frames.

Material & Standards

Steel Grade: ASTM A36, S235JR
Standards: ASTM A6, EN 10025, EN 10034
Profile: IPE parallel flange I beam (IPN tapered flange I beam on request)
Surface: Black hot rolled; hot dip galvanized optional for corrosion protection

Size & Custom Processing

Complete IPE size range: IPE80 to IPE600. We provide cut-to-length, drilling, notching, bending and prefabrication service according to customer drawings. All dimensions, straightness and tolerances comply with international structural steel specifications.

Product Advantages

High strength-to-weight ratio, outstanding bending and shear resistance.

ASTM A36 / S235JR grade, easy to weld, cut and assemble on site.

Parallel flange design, convenient for bolt connection.

Consistent section size, reliable performance for heavy load main structure.

Can be galvanized for outdoor, coastal and mining corrosive environments.

Hot Rolled Steel I Beam Specification

Item	Available Range
Product	ASTM A36 S235JR Hot Rolled IPE Section Steel I Beam
Type	IPE Parallel Flange I Beam, IPN optional
Material Grade	ASTM A36, S235JR
Standard	ASTM A6, EN 10025, EN 10034
Specifications	IPE80 ~ IPE600 / Customized
Length	2000 – 12000 mm / Custom Cut To Length
Surface	Black Hot Rolled, Hot Dip Galvanized Optional
Edge	Mill Edge / Cut Edge / Deburred
Processing	Cutting / Drilling / Notching / Bending / Pre-fabrication
Tolerance	According to EN & ASTM Standard / Customized
Application	Steel Workshop, Mining Support, Platform, Bridge, Machinery Frame
Packing	Steel Bundles / Steel Strapping / Standard Export Seaworthy Packing
MOQ	Based on Grade, IPE Size & Specification
Inspection	MTC Mill Test Certificate / Third-Party Inspection Available
Customization	Size / Length / Galvanizing / Drilling / Fabrication Available

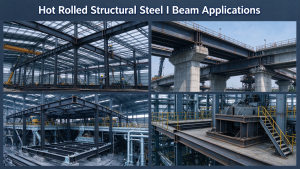

Applications

Main load-bearing frame of steel workshop and warehouse
Mining plant structural supports, equipment bases and walkway platforms
Bridge secondary beams, overpass and heavy support structures
Heavy machinery base and equipment frame
Agricultural steel buildings and commercial construction projects

FAQ

Q1: What is IPE section I beam?

A: IPE is European standard parallel-flange I beam. It has parallel inner and outer flange surfaces, easier for bolt connection. It is widely used for primary load-bearing structures in construction, mining and infrastructure projects.

Q2: What is the difference between ASTM A36 and S235JR IPE beam?

A: ASTM A36 is American carbon steel grade, popular for North and South American projects. S235JR follows EN 10025 European standard, widely accepted in Europe, Africa and Middle East. Both grades have good weldability and mechanical performance for structural load.

Q3: Can you supply galvanized IPE I beam?

A: Our standard surface is black hot rolled finish. Hot-dip galvanizing service is available upon request, ideal for outdoor, coastal and mining environments that require anti-corrosion protection.

Q4: What IPE sizes are available?

A: We supply full IPE range from IPE80 up to IPE600. Custom lengths and special fabrication are supported. Please send your target size for quotation.

Q5: Can you cut, drill, notch or prefabricate the IPE beam as per our drawings?

A: Yes. We provide cut-to-length, drilling, notching and prefabrication services. Pre-processing reduces your site work and speeds up installation.

Q6: Can you provide Mill Test Certificate (MTC)?

A: Yes, MTC EN 10204 3.1 will be issued for each batch. Third-party inspection such as SGS or BV is acceptable if required by your project.

Q7: What trade terms can you offer?

A: EXW, FOB, CFR, CIF are available. We have rich experience shipping steel sections to Africa, South America and Europe for mining, building and infrastructure projects.

Q8: Do you have a fixed MOQ?

A: There is no strict fixed MOQ. It depends on IPE size, steel grade and surface treatment. We accept small trial orders as well as full container bulk orders.

Q9: How are the IPE beams packed for sea shipment?

A: IPE beams are bundled and fixed with steel strapping. It is standard seaworthy export packing to prevent deformation and damage during ocean transport.
